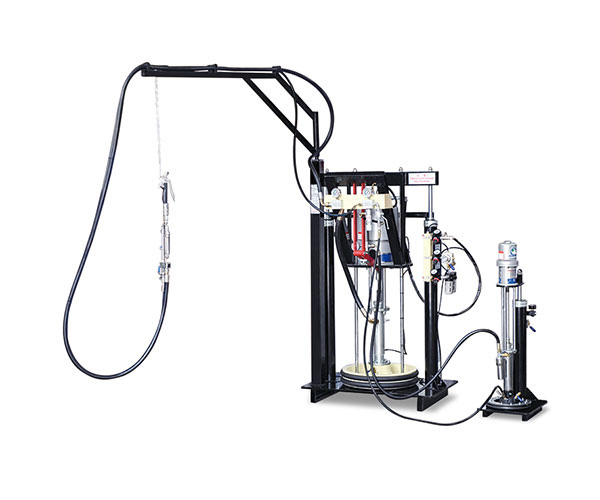

TWO-COMPONENT EXTRUDER

Product Details

1-This extruder is the special machine for spreading double-component sealant.
2-It is full pneumatic type and do not need electric supply, can be easy to move and operation in the building site.
3-Easy operation, easy maintenance, stable working, high efficiency, It can suit the request of insulating glass and glass curtain wall batch production.

4-The main parts is from South Korea. Brand name : HASCO.

5-The curative agent hydraulic pressure system have two sets of filtration devices, advance the uniformity and curative capability.

6-The valve ports of the basic material pump, the curative agent pump and proportioning pump all adopt the special alloy with zero leakage.

7-The rubber mixing system adopt the strip shaker with international static state to -and-fro technology, and the imported mix mandril.

Model

ST03

Mixing Ratio

6:1——14 :1

Basic Component Bucket

55 Gallon(200L)

Hardener Bucket

5 Gallon(20L)

Max Air Consumption

0.8m3/min

Sealant Air Pressure Rate

50:1

Max Squeezing Pressure

20Mpa

Air Pressure

 0.5——0.8Mpa

Outside Dimension

1200*1100*2500mm

Weight

600kg

Concentrate, Professional, Every step

◆ Strong mechanical processing strength ensures the perfect quality of each part.
◆ Global strength partners, purchasing real high-end accessories.
◆ Skilled workers ensure accurate assembly and commissioning of each piece of equipment.
◆ Passed strict inspection, the whole wooden box packaging.
◆ Perfect logistics ensures that the machines supply the transportation in time.
◆ Professional service team to ensure pre-sale, post-sale worry-free.
