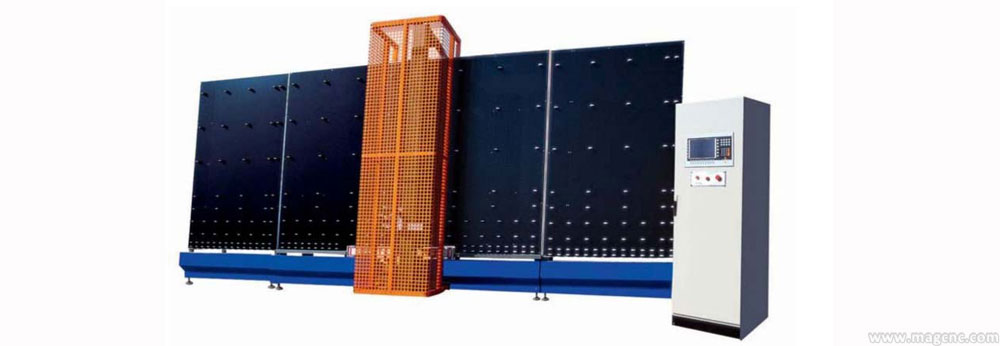

1.Main features:

1). CNC system controls 4 axis servo motor movements.
2). Polygon shape available.Automatically collect the wheel dust and check wheel wearing.
3). Automatically test glass size and uneven width film removing.
4). Polygon shape available.

2. Technical parameter:

Power Supply:   3P 380V/1P+N 220V 50Hz 17kW
Brand Name:  MAG Machine
Glass size: Max :2450mm×3000mm ;
         Min: 300mm×600mm
Glass thickness:3-19mm
Removing width: 0-150mm
Removing speed: 0-30m/min(adjustable)
Accuracy:  ±0.2mm
Air source:  0.6-0.8Mpa
Wheel turning speed:  0-2700rpm(drove by inverter)
Conveying belt height:  450±50mm
Machine size (LxWxH): 8200mmx1800mmx3500mm
