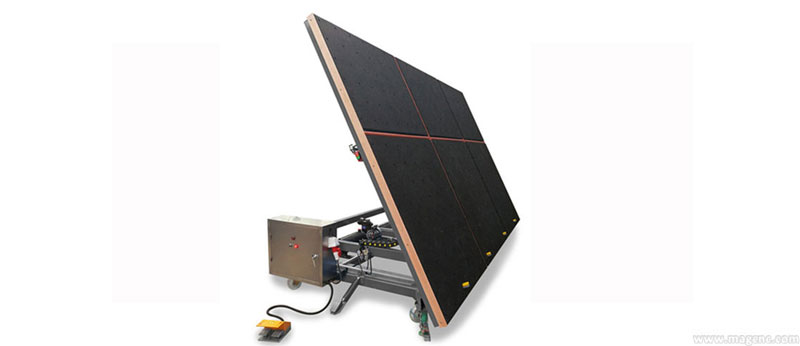

Air-floating Manual Glass Cutting Breaking Table

Product Details

Main features:
1. Adopts the air-cushion type work table. It has pneumatic tilting function for unloading glass. This machine working surface is equiped with air floating blower system for easy handing and shifting movement of the glass
2. The table has overturn function, so it can tilt from vertical to horizontal, it is controlled by foot switch, very simple and convenient to operate. With hydraulically operated tilting table for stable and smooth ascending and descending motion and had pinions for catching the glass to ensure safety during loading of glass
3. There is bars to guarantee the glass do not fall down and break.
4. The good carpet coated on the table, so it can not scratch the surface of glass.
5.With breaking system. Function of breakage on x and y axies

Technical Parameters

Brand Name

MAG

Max Cutting Size

W2440*L3660mm

Power

5.1KW

Voltage

3phase 380V/50Hz or customer specification

Thickness

3-15mm

Fan Power

4KW

Max Overturn Angle

80°

Overall Dimensions

L3760*W2200*H900mm

Weight

800KGS

Concentrate, Professional, Every step

◆ Strong mechanical processing strength ensures the perfect quality of each part.
◆ Global strength partners, purchasing real high-end accessories.
◆ Skilled workers ensure accurate assembly and commissioning of each piece of equipment.
◆ Passed strict inspection, the whole wooden box packaging.
◆ Perfect logistics ensures that the machines supply the transportation in time.
◆ Professional service team to ensure pre-sale, post-sale worry-free.
