Make buildings more energy-saving and make life getting better

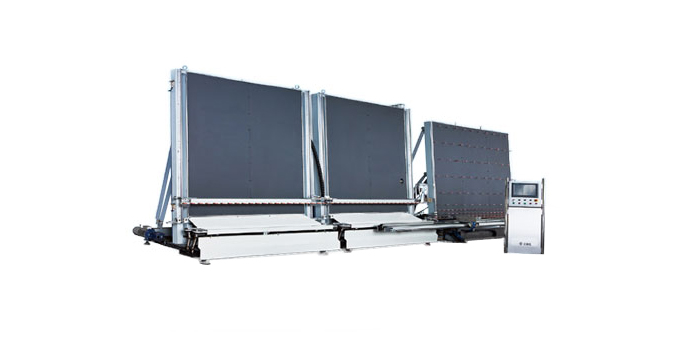

ZDJ-01 type Automatic sealing robot

Product Details

Features
1. High production capacity up to 40m/min.
2. Perfect finishing of corner and edge
3. Accurate mixing rate
4. Real time control by touch screen
5. Precise transfer glass using belt conveyor method
6. Automatic adjust Sealing amount by automatic detection of depth of space r
7. Self-diagnosis and alarm Function
8. Precise transfer glass with high-precision straight rail

Technical Data

Power Supply

380V/50Hz or customized

Total voltage

13kw

Brand Name

MAG Machine

Air pressure

0.5-0.7MPa

Squeeze pressure

32MPa

Max.glass size

2500*4000mm

Min.glass size

350*500mm

Insulating glass thickness

12-56mm

Working speed

5-40m/min

Sealing Depth

3- 18mm

Cycle time

25sec(1000mm x 1000mm)

Max. glass weight

800kg

 Air pressure

8kgf/cm 2

 Overall dimension(Lx Hx W)

10830 mm×3250 mm×3500 mm



Concentrate, Professional, Every step

◆ Strong mechanical processing strength ensures the perfect quality of each part.
◆ Global strength partners, purchasing real high-end accessories.
◆ Skilled workers ensure accurate assembly and commissioning of each piece of equipment.
◆ Passed strict inspection, the whole wooden box packaging.
◆ Perfect logistics ensures that the machines supply the transportation in time.
◆ Professional service team to ensure pre-sale, post-sale worry-free.
