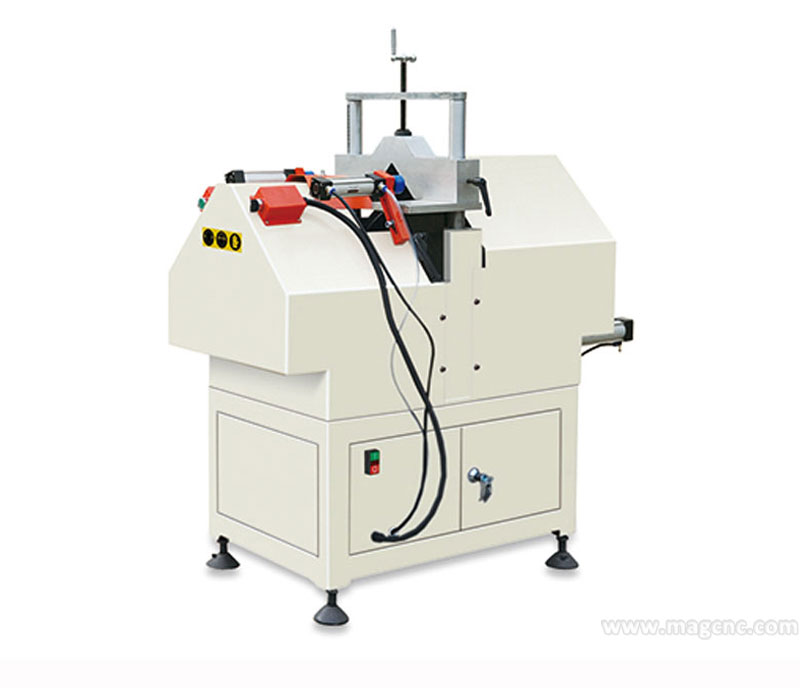

V Notch Cutting Saw

Product Details

1.Main features

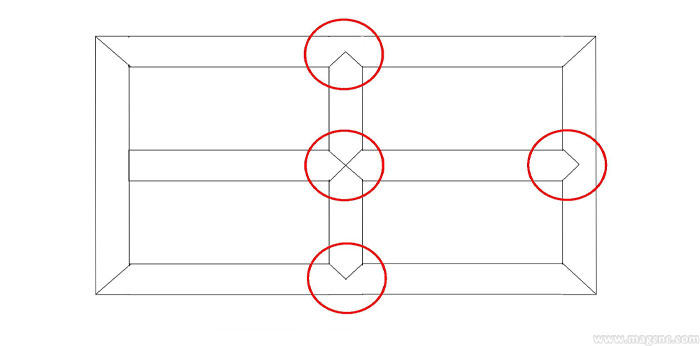

 1). The machine applies to 90 v groove cutting for aluminum and plastic profiled bar which is clamped and cut by pneumatic drive
2). it has characteristics of simple operation , high safety, exact cutting dimension, and convenient maintenance.

2.Technical Parameters

Brand Name

MAG

Model

SVJ-60

 Power voltage

380V  50HZ or as customer specification

Input power

0.75*2KW

Air pressure

0.4~0.6MPa

Air consumption

80L/min

Main motor rotation speed

2800r/min

Saw Blade Specification

ø300x3.2x ø30

Saw cutting width

120mm

Cutting length

300-1600mm

Cutting groove depth

20-60mm

Overall dimension

1900mm×700mm×1350mm

Weight

210kg
