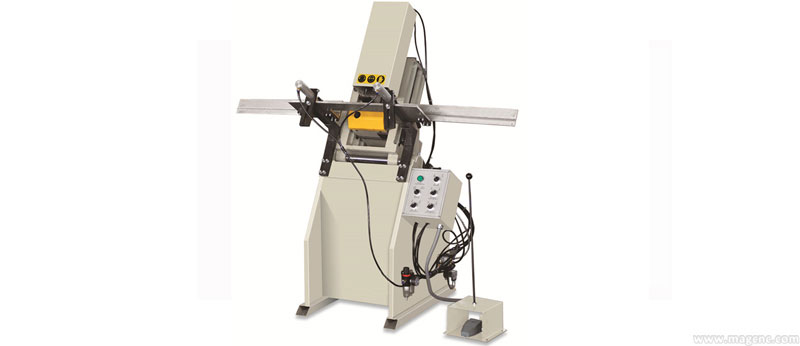

Water Slot Milling Machine

Product Details

1.Main features

1) .The machine is a specialized equipment processing all types of waterspouts and grooves for gas-pressure balance of plastic door and window.
2). On the top ,there is a working part for milling, which ensures positional accuracy of groove and hole very high work efficiency.
3). It has high efficiency and stable performance, also has high working accuracy; it applies to machine middle and high class doors and windows.

2.Technical Parameters

Brand Name

MAG

Power Supply

380V 50Hz or customers specifications

Model

SCX01-1

SCX01-2

SCX01-3

SCX01-4

Air consumption

30L/min

60L/min

95L/min

110L/min

Total power

0.38KW

0.76KW

1.14KW

1.52KW

Speed

25000r/min

25000r/min

25000r/min

25000r/min

air pressure

0.5~0.8MPa

0.5~0.8MPa

0.5~0.8MPa

0.5~0.8MPa

Slot depth

30mm

30mm

30mm

30mm

Milling cutter diameter

Φ4,Φ5

Φ4,Φ5

Φ4,Φ5

Φ4,Φ5

Slot length

30-60mm

30-60mm

30-60mm

30-60mm

Weight

140kg

160kg

180kg

200kg

Over all dimension

2100*860*1500mm

Concentrate, Professional, Every step

◆ Strong mechanical processing strength ensures the perfect quality of each part.
◆ Global strength partners, purchasing real high-end accessories.
◆ Skilled workers ensure accurate assembly and commissioning of each piece of equipment.
◆ Passed strict inspection, the whole wooden box packaging.
◆ Perfect logistics ensures that the machines supply the transportation in time.
◆ Professional service team to ensure pre-sale, post-sale worry-free.
