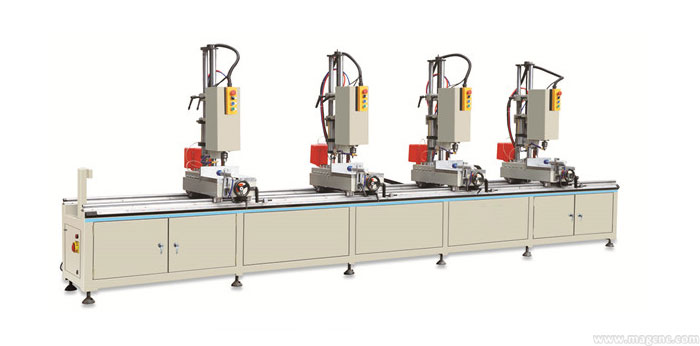

Multi-head combination drilling machine

Product Details

1.Main features

1). Special for drilling of aluminum window, curtain wall profiles. It is suitable for long profile process and mass production.
 2). Max process cross section is 250*250mm, Max process length is 5000mm.
 3)..Pneumatic-hydraulic damp feeding system.
 4). Imported PLC control system with steady capability.

2.Technical Parameters

Brand Name

MAG

Model

LZZ4-13

Power Supply

380V 50Hz or customers specifications

Main motor Power

4x1.1KW

Working voltage

380V 50Hz

Operating air pressure

0.5-0.8Mpa

Max/Min distance between each group holes

5000mm/300mm

Max processing profile section size

250*250mm

Drilling head feeding travel

125mm

Work table size  L x W

300*200mm

Size

5500*1100*1800mm

Weight

1300KG

Concentrate, Professional, Every step

◆ Strong mechanical processing strength ensures the perfect quality of each part.
◆ Global strength partners, purchasing real high-end accessories.
◆ Skilled workers ensure accurate assembly and commissioning of each piece of equipment.
◆ Passed strict inspection, the whole wooden box packaging.
◆ Perfect logistics ensures that the machines supply the transportation in time.
◆ Professional service team to ensure pre-sale, post-sale worry-free.
