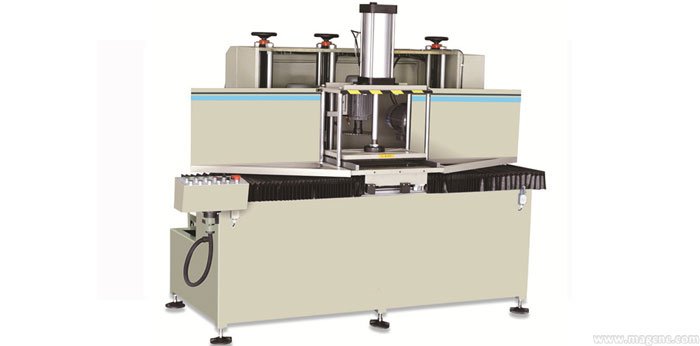

Profile Tenon Milling Machine

Product Details

1.Main features

1). Used for milling the aluminum/curtain wall profile and tenon section.
2). Six set milling cutters combined to meet all milling size requirement.
3). One time feeding can process the required mortise dimension of the profile surface.
4).Tenon the required size in one cycle.
5).Milling the angle in the range of 180 degree.
6). Motor driving system for feeding.

2.Technical Parameters

Brand Name

MAG

Model

LXDQ-250

Power Supply

380V 50Hz or customers specifications

Input Power

13.57kw

Power supply

380V/50Hz

Working pressure

0.5-0.8MPa

Motor rotary speed

2800r/min

Saw Blade specification

φ 250*φ 32   φ 300*φ 32

Workable journey

1570mm

Worktable size

510*480mm

Overall dimension

2500*1300*1800mm

Weight

1800kg

Concentrate, Professional, Every step

◆ Strong mechanical processing strength ensures the perfect quality of each part.
◆ Global strength partners, purchasing real high-end accessories.
◆ Skilled workers ensure accurate assembly and commissioning of each piece of equipment.
◆ Passed strict inspection, the whole wooden box packaging.
◆ Perfect logistics ensures that the machines supply the transportation in time.
◆ Professional service team to ensure pre-sale, post-sale worry-free.
