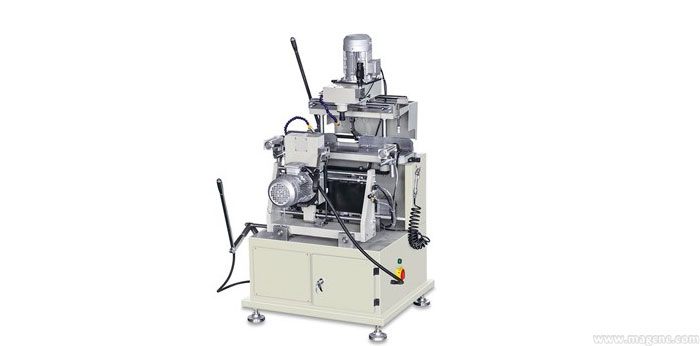

1.Main features

1). Suitable for duplicating complicated section holes in aluminum profiles.

2). The mould board is used to copy a shape of holes on aluminum profiles as per 1:1 ratio.

3). Section holes in orthogonal faces of aluminum.

4). Profiles can be processed in one aluminum clamping by using two individual milling beads.

5). Imported milling cutter is used for increasing productivity and providing good quality on processing material's surface.
2.Technical Parameters

Brand Name                                          MAG
Model                                                      LXF2A-235*100
Power Supply                                         380V 50Hz or customers specifications
Input Power                                           1.5x2.2KW
Motor Rotary Speed                            0-18000r/min
Air pressure                                           0.5~0.8Mpa
Milling cutter diameter                      Φ5  Φ8
Copy router range                                Horizontal copy-routing: Max 235x100mm
Vertical copy-routing:                         Max 235x100mm
Overall Dimension                                880x11500x1580mm
Weight                                                    370kg
