1.Main features

1).  This machine is designed for processing round holes,slot,keyhole,shaped-hole(rigidity tapping option)etc on aluminum profile,window door and curtain wall  industry,it is suitable for drilling,chamfering,engraving plane surface and other procedures on aluminum profile with arbitary angle from -90°to 90°.
2) . It is provided with automatic chip removal function.
3).  Main spindle adopt air-cooling electric main axis from Italy,total power is 9.6KW,and rotary speed is 0--24000r/min,high precision,high safety,high reliability.
4).  Adopt Chinese Higerman CNC control system,Have professional CAD-CAM programming software,It can translate processing G code automatically,have function of easy operation,high efficiency and lower labor intensity.
5). Imported guide rail,sliding block,X axis adopt high precision oblique gear and rack driving.Y and Z axis adopt high precision ball crew drive.The drive is stable,so can improve the precision of whole machine.
6).  Inside blades storage can hold 6-8sets blades,the handle is approved ISO30 standard ,it  is very safety and reliable.
7).  The worktable can overturn 180°,-90°,0°,+90°,CNC system control servo motor to realize the worktable overturn from -90°to +90°in arbitary angle,Clamping one time profile can realize deeply hole (hetero type hole),it can realize deeply hole processing through overturn worktable,so can highly improve processing efficiency.
8).  Adopt automatic pump oil supply system,blades adopt system control spray cooling device.
9) .The main electrical parts:circuit breakers,AC contactor are all ACHNEIDER brand.
10). The main components adopts steel structure and they are all through aging treatment.

2.Technical Parameters

Brand Name                                          MAG

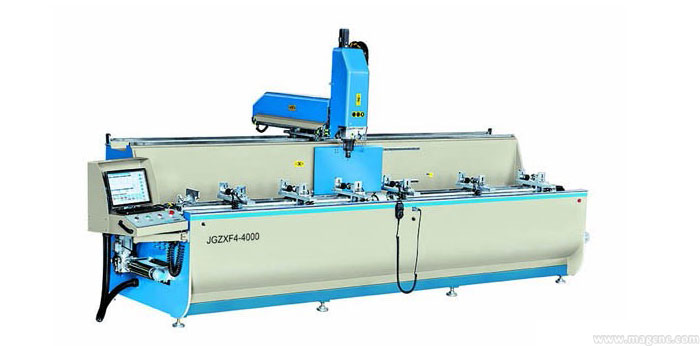

Model                                                      JGZXF4-CNC-4000

Power Supply                                         380V 50Hz or customers specifications

X/Y/Z Axis stroke                                  4000mm*640mm*440mm

Air Pressure                                           0.5~0.8MPa

X axis speed                                           50000mm/min

 Y and Z axis speed                               15000mm/min

Input Power                                           13.5KW

Main axis power                                   S6:9.6KW  S1: 8KW

 Max rotary speed                                24000/min

Overall size                                            5630×2780×2500mm

Weight                                                    2600kg
