1.Main features

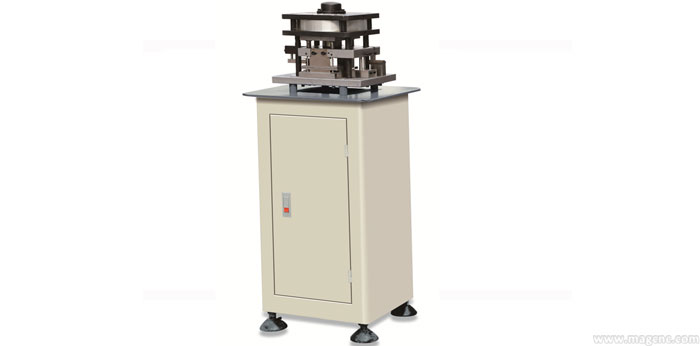

1). This machine is a four station pneumatic stamping. Stamping is smooth, the production efficiency i very high.
2). For casement aluminum window and door hardware installation hole groove punch (the 20mm European standard C slot).
3). The power adopts a pneumatic pedal value control, stable work.
4). Four working position, can be completed in a flat opening sash material handle installation groove, cutting angle and the driver`s head punching (usually 10,6 DIA) of the processing.

2.Technical Parameters

Brand Name                                                             MAG
Model                                                                        LYA-16
Rated pressure                                                        30KN
Punching travel                                                       30mm
Air consumption pressure                                     0.5-0.8Mpa
Cutting profile surface roughness                       Ra12.5μm
Over all dimension                                                  600*600*1550mm
Weight                                                                       180kg
