1.Main features

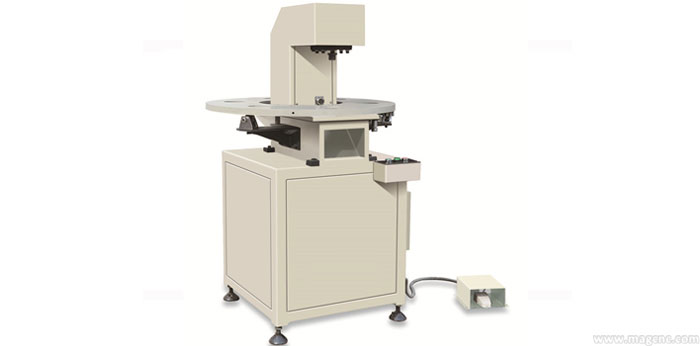

1).The punching machine is necessary for assembling alu-alloy doors and windows, suitable for punching procedure of alu-alloy profiles.
2).Each combination dies, assorted with the pressing machine, it can complete all punching procedures of window frame and window sash of one specification.
3). Change the different work positions can complete punching process of doors and windows with different series and spedification.
4). Disc type working table with six working positions can be placed with six dies.
5). By turning the working table, different dies can be used and so work efficiency is greatly raised  .

2.Technical Parameters

Brand Name                                                     MAG
Model                                                                LYA6-50
Power Supply                                                   380V 50Hz or customers specifications
Input Power                                                     1.5KW
Rating oil pressure                                          15Mpa
Capacity of oil box                                           20L
Rated pressure                                                50KN
Closing height                                                  185mm
Die size                                                              250*200*215mm
Punching travel                                               30mm
Times of stroke                                                30 /min
Cutting profile surface roughness               Ra12.5μm
Over all dimension                                          1000*1200*1700mm
Weight                                                               500kg
