1.Main features

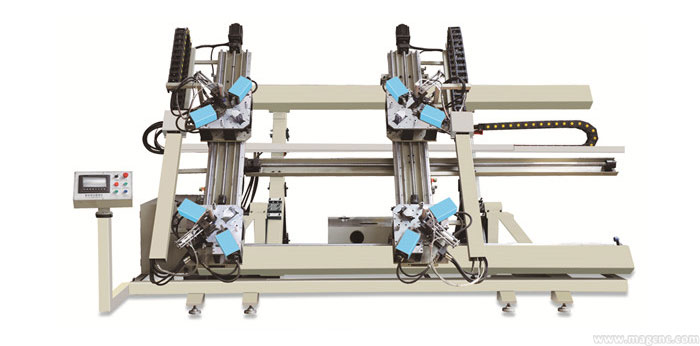

1). The machine is used for combine the aluminum windows and doors corner.

2). The 45 degree corner is jointed by steel corner connectors.

3). It can finished a whole rectangle frame combination at one time.

4). The whole combination procedure CNC controlled, features high automatization.

5). The four head moving system adopt linear bearing, which features high precision, high resistance.

6). The machine can combine both the common aluminum profiles and also the thermal breaking aluminum profiles.

7). The control system has position control and momental feedback function for preventing location error.

8). Imported servo system, self-brake device for making sure high precision crimping and accurate crimping position.

9). Dual enlarge location block makes stable location.

10). High-low pressure dual feeding for improving the synchronism of the tooling.

2.Technical Parameters

Brand Name                                                         MAG
Model                                                                    LM4S-100*1800*3000
Power Supply                                                       380V 50Hz or customers specifications
Input power                                                         4kw
Air pressure                                                          0.6-0.8M pa
Rating Oil  pressure                                            15Mpa
Oil tank capacity                                                 60L
Max frame dimension of window                   3000*1800mm
Min frame dimension of window                    480*480mm
Profile processing width                                    90mm
Corner combining pressure                              48KN
Cater-corner error of finished windows        ≤1mm(1500*1500mm)
Connection seam error                                      ≤0.15mm
Overall dimension: (L × W ×H)                         4700*2200mm*2600mm
Weight:                                                                 2500Kg
