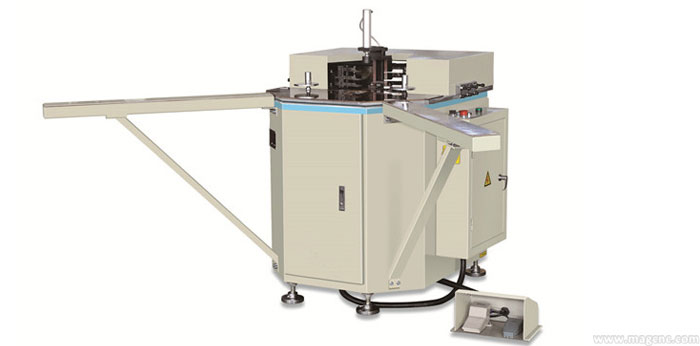

1.Main features

1).The machine is specialized in production of hi-grad aluminum door and windows, and it is suitable to connection of 90 angle structure of aluminum door and window.
2). Strengthened machine structure and rack make it makr more stable than before.
3). Automatic Up-down inner localization make the work piece clamping convenient.
4). Special hydraulic system station with big power and big crimping power, that can process the cross-section and more thickness profile, fast crimping and high efficiency.
5). The centre drawer block can move down when finished the work.
6) Synchronous feeding of the level(left and right side) pushing knives by link with one hydraulic cylinder driving, which avoid the corner deform and enhance the corner connection efficiently.
7) Convenient operation and less error in processing.
8) Distance of tool knife adjustable, as the screw thread connection, easy working for tools.

 2.Technical Parameters

Brand Name                                                         MAG
Model                                                                    LMB-120S
Power Supply                                                       380V 50Hz or customers specifications
Main motor power:                                            2.2kw
Air pressure                                                          0.6-0.8Mpa
Rated pressure                                                    20Mpa
General Pressure of corner combining         26-41.6KN
Capability of oil box                                            60L
Profile width                                                         90mm
Casing movement journey                                0-95mm
Over all dimension: (L × W ×H)                        1150*1100*1300mm
Weight:                                                                 534Kg
