1.Main features

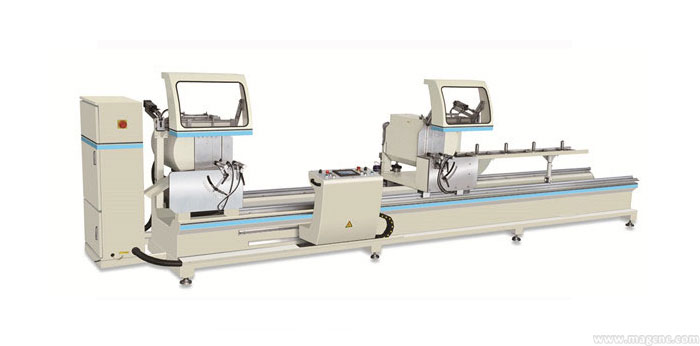

1). This machine is designed for cutting of aluminum profile.
2). The two saw head independent swing angle, adopt cylinder driving, set up three common angle that is -45°90°+45°。
3). Set up manually position at arbitrary angle function within 45°~90°，the knob to the positioning position, make the pendulum angle cylinder pressure to be released in full, avoid plane positioning arbitrary angle position change.
4). When saw head swing to 45°, the front protection hood automatically to two saw head of intermediate mobile, which increase the reliability of safety production.
5). Large cutting range, cutting 160~220mm when 90°, cutting 160~155mm when 45°.(Profile width less than 160mm, the corresponding height increase).
6). The right saw head follow-up material carrying frame length is1800mm.

2.Technical Parameters

Brand Name                             MAG                                     MAG                                         MAG
Model                                         LJDGN2BS-500*5000  LJDGN2BX-500*5000   LJDGN2B-500*5000
Power Supply                            380V 50Hz or customers specifications
Main motor power:                5.9kw                                    2*2.2kw                                   2*2.2kw
Air pressure                               0.6-0.8MPa                         0.6-0.8MPa                             0.6-0.8Mpa
Air consumption                       200L /min                            200L /min                                200L /min
Rotation speed                         2840 r/min                          2840 r/min                              2840 r/min
Max Cutting length                 580-5000mm                      400-5000mm                          435-5000mm
Saw blade dimension:             500x30x4.4xZ120              500x30x4.4xZ120      500x30x4.4xZ120
Cutting angle:                           45 ° 90 ° 135 °                     45 ° 90 ° 135 °                         45 ° 90 ° 135 °
Repeat locating length          ≤0.3mm                               ≤0.3mm                                   ≤0.2mm
Angle cutting tolerance         ±5′                                         ±5′                                             ±5′
Plane of cutting surface         ≤0.10                                    ≤0.10                                        ≤0.10
Cutting Surface roughness    Ra12.5μm                           Ra12.5μm                               Ra12.5μm
Cutting W x H(mm)                 160X155                               160X155                                   160X155
Overall dimension                  (WxHxL) 7300*1300*1500mm/8300*1300*1500mm
Weight                                       1800/2100 kg                     1800/2100 kg                         1800/2100 kg
