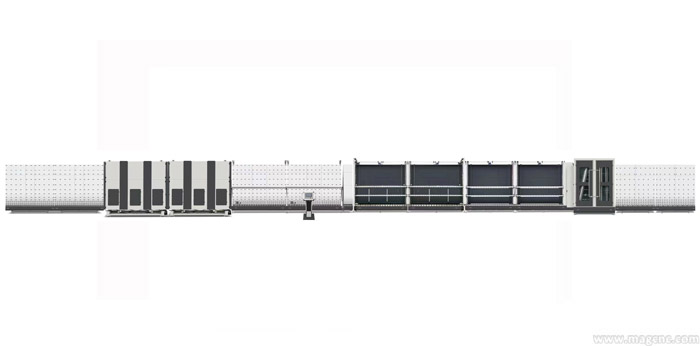

Tandem Assembly Gas Filling Insulating Glass Line

Product Details

1). Double Station system, running independently, improving production efficiency.

2). Full PLC control system, touch screen Human-machine interface.

3). Can Clean online and offline Low-E glass.

4). The speed of cleaning Low-E glass brush can be driven by frequency conversion.

5). Digital control production line, intermittent work energy-saving system.

6). Aluminum frame automatic positioning system and glass automatic positioning system.

7).Servo plate processing, accurate tablet processing, with functions of inflation, film closing of glass size, automatic adjustment of the best inflation time, inflation time, inflation rate of more than 90%, saving gas consumption.

Model

LBXH3000CQ

LBXH3300CQ

Power Supply

380V 50Hz or customers specifications

380V 50Hz or customers specifications

Input Power

68KW

76KW

Mini Glass Size

300x300mm

300x300mm

Max. Glass Size

3000x6000mm

3300x7000mm

Max IG Unit Thickness

Not more than 80mm

Not more than 80mm

Inflating Time

2-10s

2-10s

Transmission Speed

0-45m/min

0-45m/min

Glass Washing Speed

2-10m/min

2-10m/min

Glass Washing Thickness

3-28mm

3-28mm

Overall Dimension

39500x3200x4050

48500x3200x4050


Concentrate, Professional, Every step

◆ Strong mechanical processing strength ensures the perfect quality of each part.
◆ Global strength partners, purchasing real high-end accessories.
◆ Skilled workers ensure accurate assembly and commissioning of each piece of equipment.
◆ Passed strict inspection, the whole wooden box packaging.
◆ Perfect logistics ensures that the machines supply the transportation in time.
◆ Professional service team to ensure pre-sale, post-sale worry-free.
