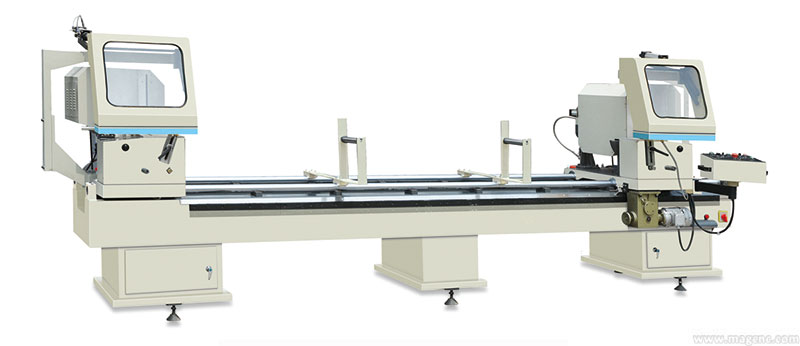

1.Main features

1). Used for not only aluminum profile,curtain wall profile and PVC profiles cutting, but also corner connector cutting.
2). Feeding system adopts imported linear guide pair, with high accuracy and long service life.
3). 45°and 90° cutting is available.
4). Saw blade rotate smoothly due to high accuracy main spindle.
5). Imported carbide saw blade give accurate processing and high endurance.
6). Imported linear bearing motion pair ensured steady processing accuracy.
7). Uniform speed feeding and smooth motion due to airdraulic damping cylinder.
8). Auto-opening guard shield ensured safety operation.

2.Technical Parameters

Brand Name                                                 MAG
Model                                                            LJZ2-450x3700
Power Supply                                               380V 50Hz or customers specifications
Input power                                                 3.55kw
Air pressure                                                  0.5-0 .8 M pa
Main motor rotation speed:                    2800rpm.
Max/min Cutting length                            680-3700mm
Saw blade dimension:                                φ450× φ30
Cutting angle:                                              -45 ° 90 ° 45 °
Cutting W X H                                              120 X 200 ( mm )
Repeat locating length                              ≤0.2mm
Angle cutting tolerance                            ±5′
Plane of cutting surface                            ≤0.10
Cutting profile surface roughness           Ra12.5um
Package Size: (WxHx L)                             4500*1170*1500mm
Weight:                                                         1500Kg
