1.Main features

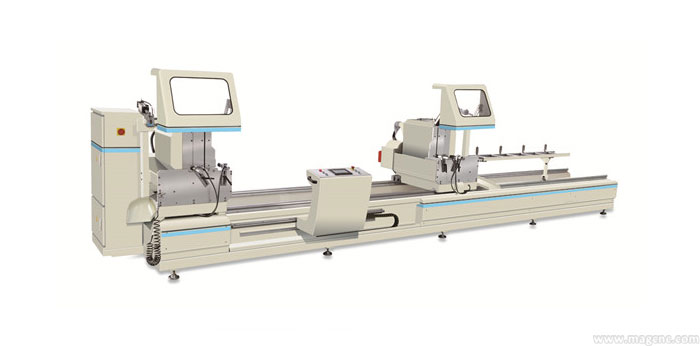

1). The machine is the most advanced double head cutting saw equipment for aluminum window door.
2). The control system adopts the new closed-loop system.
3). The Servo motor drives the speed reducer to adjust degree in 45°-157.5°.
4). Several profiles processing dimensions can be input one time and make continuous cutting.
5). The imported high precision blade makes the cutting surface more smooth.
6). The processing dimension can be directly input, the cutting length can be changed without returning the reference point.
7). The air-proof device under the workable has wonderful crumbs clearing effect.
8). The following saw cover keeps it working in the clean environment.
9). The profile is clamped by two cylinders in every head, and kept the cutting security.

2.Technical Parameters

Brand Name                                        MAG
Model                                                   LJZ2R-CNC-500*6000
Power Supply                                      380V 50Hz or customers specifications
Main motor power:                           2 x 2.2kw
Air pressure                                         0.6-0.8Mpa
Main motor rotation speed:           2800r/min
Air consumption                                 60L/min
45° Cutting length                             760-6000mm
90° Cutting length                             480-6000mm
Saw blade dimension:                       Φ500×Φ30
Cutting angle:                                     45 °  ~90 °  ~157.5 °  any angle in the range
Cutting W x H                                      120*230mm
Size: (width × high × long)                7800/9000*1800*1530mm
Weight:                                                2500/2800Kg
