1.Main features

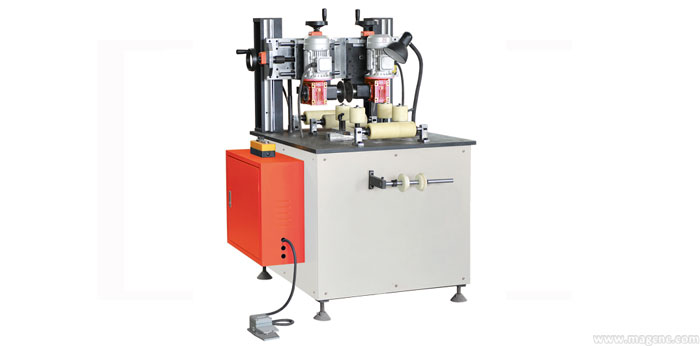

1). It is used for the thermal aluminum profile knurling and strip feeding.
2). Special equipment manufactured for thermal break aluminum profile.
3). It is used to knurl on the notch of thermal break aluminum profile to improve horizontal shear force of profile.
4). It is the key machine to increase shear strength, knurling slot of extrusion profile through rotating knife at a high speed.
5). Stepless speed regulation is available by using frequency converter.
6). Electric controlled lifting of knurling knife and more stable automatically changing of different profile is available.
7). It can work with laminating frame and clamping device which means the machine poccesses the function of knurling, strip feeding and laminating film sticking.
8). The machine can inster nylon or PVC strip into profile at the same time of knurling.

2.Technical Parameters

Brand Name                                                         MAG
Model                                                                    GRKC02
Power Supply                                                       380V 50Hz or customers specifications
Input power:                                                        1.1Kw
Air pressure                                                          0.5-0.8M pa
Feeding speed                                                      10-105m/min (stepless adjusting)
Knurling cutter diameter                                  90mm
Thermal break strip width                                0-40mm
Max. processing profile section (W*H)          240*380mm
Profile support dimension (L*W*H)                5000*450*900mm
Size: (width × high × long)                                 1000mm × 900mm × 1580mm
Weight:                                                                 800Kg
