LB2500W type Automatic Insulating Glass Production Line

Product Details

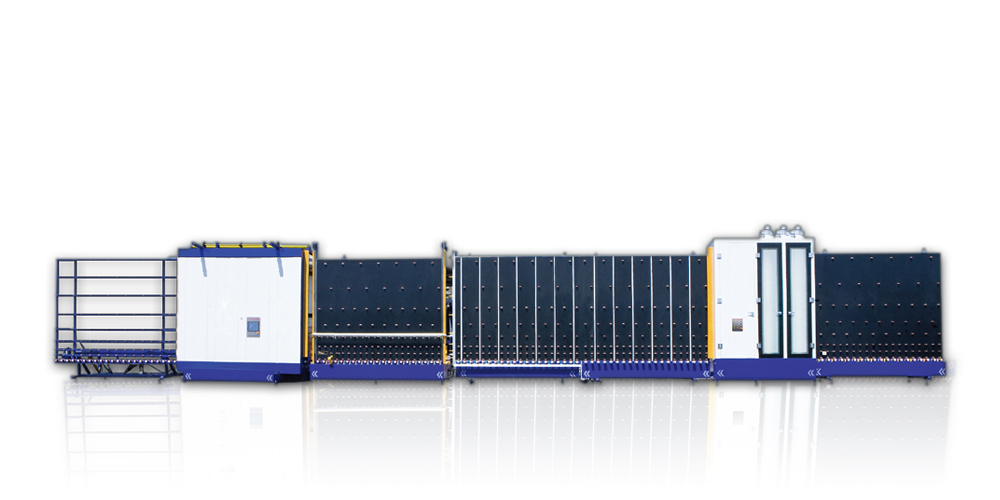

LBP1800H/2000H/2200H/2500H INSULATING GLASS PRODUCTION LINE

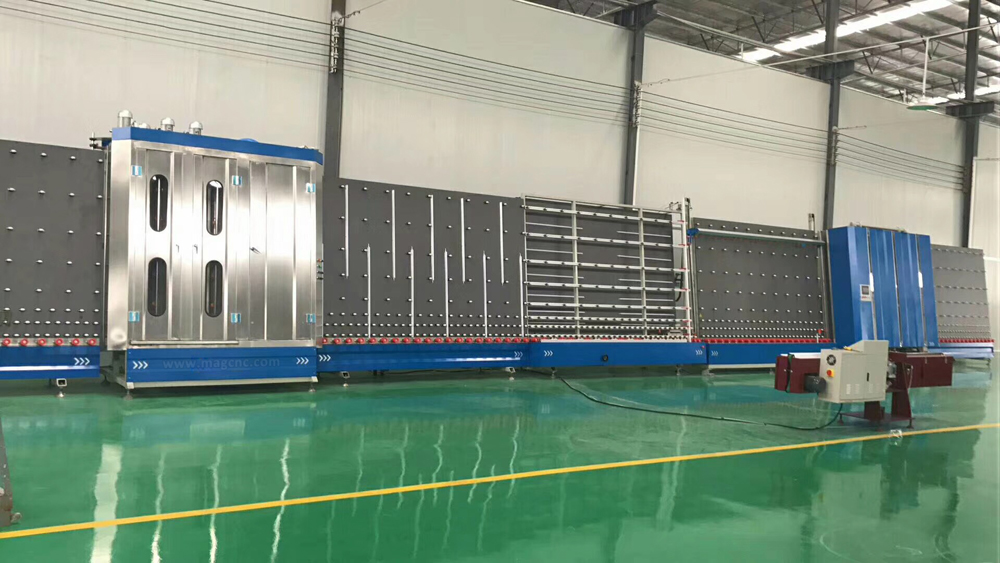

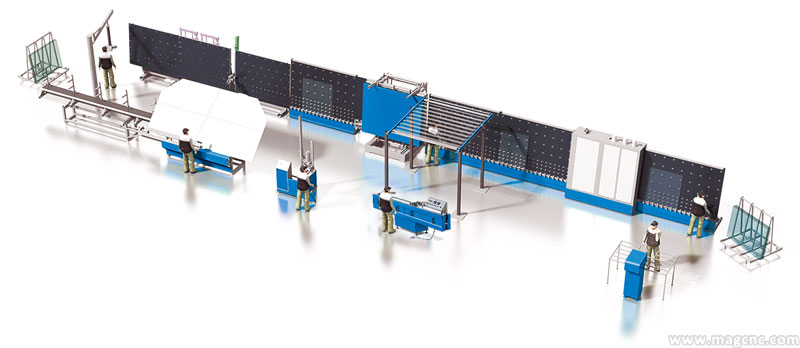

This production line adopts the most advanced IG manufacture technology and craft in the world. The whole line is composed of feeding part, glass washing and drying part, lamp inspection part, glass conveyor part, aluminum frame locating part, flat (roller) press part, tilting part.
PERFORMANCE CHARACTERISTIC:
Automatically distinguish the coating side of coated glass and Low-E glass.
PLC control system with touch screen operation.
Machine work and fault dynamic display.
Inside assembly lines can produce standard double layer insulating glass and three layers insulating glass.(Optional)
Insulating glass press design - gear and rack synchronous device driven by hydraulic station.
Stainless steel body prevents corrosion and guarantees semi-permanent life
Heater device for preventing freeze
Apply separately low and high of transfer speed for enhancing productivity
Uniform pressure capacity regardless with alteration of I/G thickness.(within ±0.3mm)
Fast cleaning, low-noise,Triple Glass available
MAIN TECHNIQURE PARAMETER:
                     EQUIPMENT MODEL PARAMETER                                  LBP1800H LBP2000H LBP2200H LBP2500H
POWER SUPPLY   3P 380V/50HZ 3P 380V/50HZ 3P 380V/50HZ 3P 380V/50HZ
TOTAL POWER 40.3KW 44.3KW 44.3KW 44.4KW
MAX. PROCESS GLASS SIZE 2500mmx1800mm 3000mmx2000mm 3000mmx2200mm 3600mmx2500mm
MIN. PROCESS GLASS SIZE 450mmx200mm 450mmx200mm 450mmx200mm 450mmx200mm
SINGLE GLASS THICKNESS 3-25mm 3-25mm 3-25mm 3-25mm
WASHING SPEED 3-9m/min 3-9m/min 3-9m/min 3-9m/min
CONVEYING SPEED AFTER WASHING 15-45m/min 15-45m/min 15-45m/min 15-45m/min
INERT GAS TYPE ARGON, NITROGEN ARGON, NITROGEN ARGON, NITROGEN ARGON, NITROGEN
DIMENSION(LxWxH) 19720x2200*2850mm 22800x2500x3180mm 22800x2500x3380mm 24000x2500x3680mm
TOTAL WEIGHT 7800KGS 8500KGS 9200KGS 9800KGS
