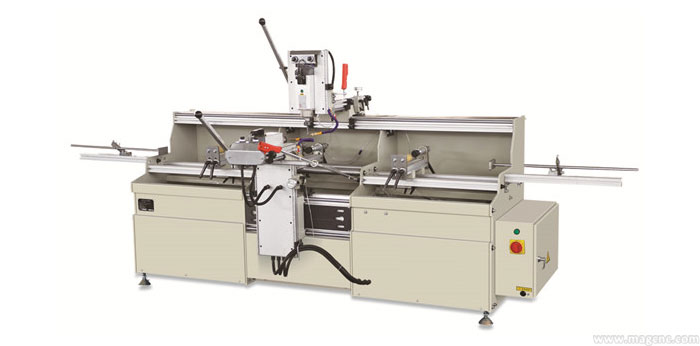

1.Main features

1). It is used for several of holes, grooves and water-slots on aluminum window & doors or curtain walls.
2).It has the features of compact  structure, nice design.
3). The air pressure drives large horizontal shift range, the clamping of the profile.
4). The easy copy-routing plate replacement.
5).Large useful scope, high efficiency and convenient operation achieve the continuous processing and safe operation.
6). Adopt two drive-head level and vertical, and can finish the clamping in two directions simultaneously.

2.Technical Parameters

Brand Name                                          MAG
Model                                                      ZLXF2-1900*125
Power Supply                                         380V 50Hz or customers specifications
Input power                                           2*3.0KW
Air pressure                                           0.5~0.8Mpa
Motor Rotary Speed                            0-18000r/min
Milling cutter diameter                      Φ5  Φ8
Copy router range                                1900*125mm
Profile section(Width x height)         UP: 230*150mm    SIDE:230*135mm
Overall Dimension                                2600*1400*1700mm
Weight                                                    600kg
