1.Main features

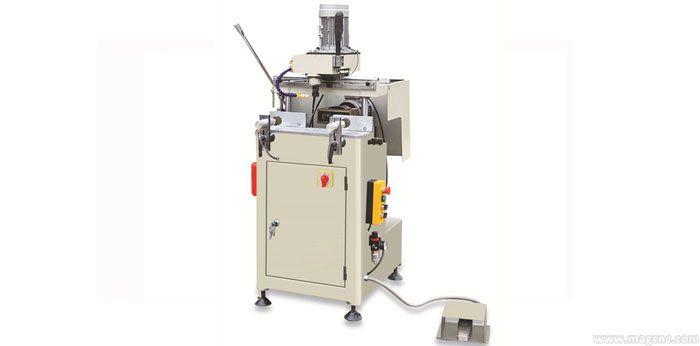

1). Used for copy-routering processing various holes, grooves and water slots on aluminium/PVC windows and doors. High-precision copy routing, easy operation, two hand operation. Changeable template for different copy routing.

2). By copying template and auxiliary position two copying method.

3). using a foot switch control the pressing cylinder, safe and reliable.

4). It has features of compact structure and small volume.

2.Technical Parameters

Brand Name                                                  MAG
Model                                                              LZ3FX-235*100
Power Supply                                                 380V 50Hz or customers specifications
Input power                                                   2.6kw
air pressure                                                    0.6-0.8mpa
Motor rotary speed                                     2800r /min
diameter of the three-hole drilling head Φ10
milling cutter diameter                              Φ5  Φ8
center of the three-hole drilling head     21.5mm x 21.5mm
copy routing range                                      235*100mm
Overall dimension                                        870*1200*1500mm
Weight                                                            310kg
