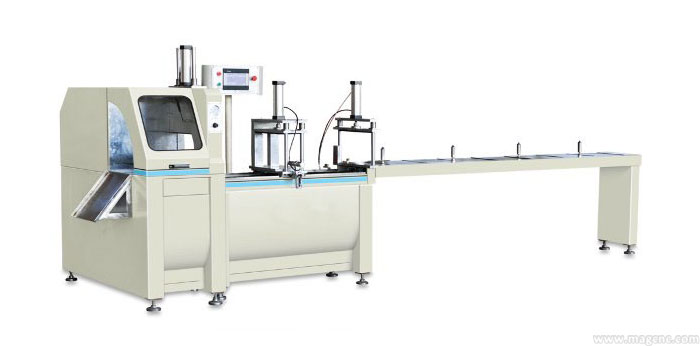

1.Main features

1).Adopt spindle motor direct drive ultra-thin hard alloy carbide tooth saw blade,high transmission efficiency,high machining precision,high material utilization.
2).The kinematic pair of cutting part adopts linear guide,the kinematic pair of automatic feeding adopts ball screw. Stable operation,high precision.
3).With the function of automatic counting.
4).With the device of spraying, which could improve the processing precision and prolong the service life of saw blade.
5).Forward and backward profile butt joint without tailing, when the profile was cutting.

(Patent No.:ZL 2015 20423765.6)

2.Technical Parameters

Model                                                            GXSK-450                                                    DZ600x1000
Brand Name                                                 MAG                                                            MAG
Power Supply                                               380V 50Hz or customers specifications
Main motor power:                                    3.0kw(Main Spindle Motor)                   3.0Kw(Main spindle motor)
Main motor rotation speed:                    2800r/min                                                  2800r/min
Saw blade dimension:                                Φ450×Φ30mm * 2.6                               Φ600xΦ30 mmx4.4
Feeding length                                             5-1000mm                                                  5-1000mm
Saw blade feeding speed                          0-3 m/min                                                   0-3 m/min
Air-pressure                                                  0.5-0.8MPa                                                0.5-0.8Mpa
The length of auto-feeding                       5-1000mm                                                  5-1000mm
Overall dimension                                       2500x1200x1650mm    (Converyor:5400mm)      2500x1700x1890mm
Weight:                                                         780Kg                                                          800Kg
