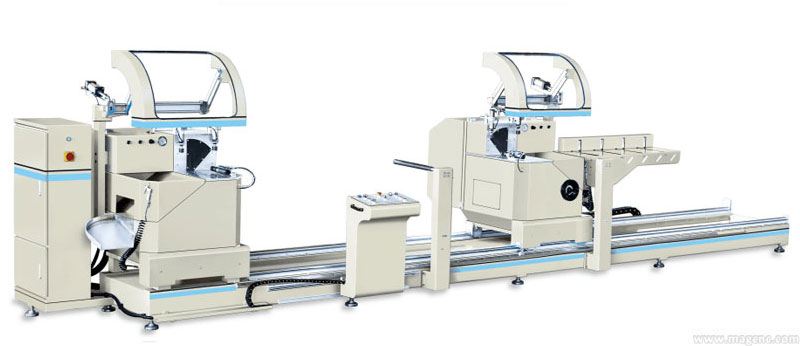

1.Main features

1). It is mainly used for processing of extra-wide aluminum profile, 650mm high quality carbide tipped saw blades.
2). High precision main shaft to keep saw blades running stability.
3). Lathe bed adopt steel structure welding and through aging treatment to avoid bed deformation .
4). The two saw head independent swing angle,adopt cylinder driving,setup inside angle that is 45° 90°.The diameter of saw blade is 650mm to realize large end face profile cutting.
5). Movable saw head adopt pneumatic measuring locking fine tuning appliance..
6). At the middle of bed equip with two sets of independent pneumatic up-down auxiliary supporting frame. Movable saw head connects with profile conveyor, make the profile be fully in stable condition.
7). Movable saw head moving adopt roller structure, by turning movable hand wheel to make the head move flexibly and portable

8). Vertical and horizontal clamping cylinder. Profile clamping adopt three position clamping structure, all these can be controlled independently.

9). The cutting angle by two saw head can be arbitrary combined, like left head 90°, right head 90°;left head 45°, right head 90°;left head 45°, right head 45°;left head 90°, right head 45°

10). Spraying cooling system. Safety protection system, heavy duty unibody steel construction.
11). CNC system and display system can be put in, it can make the cutting much more precise, and the operating more visualized.

2.Technical Parameters

Brand Name                                                MAG                                     MAG
Model                                                           JZ-600×5000                       ZXJ-650×5000
Power Supply                                              380V 50Hz or customers specifications
Main motor power:                                   4.0kw*2                               4.0kw*2
Air pressure                                                 0.6-0.8M pa                        0.6-0.8M pa
Air consumption                                         200L /min                            200L /min
Main motor rotation speed:                   2840r/min                           2840r/min
Max Cutting length                                   430-5000/6000                  400-5000/6000mm
Saw blade dimension:                               Φ600×Φ30mm                  Φ650×Φ30 x 5.6mm
Cutting angle:                                             45° and 90°                         45° and 90°
Cutting W x H (mm)                                   200×200                              215 x 155 (45°)/215 x 220 (90°)
Repeat locating length                             ≤0.3mm                               ≤0.3mm
Angle cutting tolerance                           ±5′                                         ±5′
Plane of cutting surface                           ≤0.10                                    ≤0.10
Cutting profile surface roughness          Ra12.5µm                           Ra12.5µm
Overall dimension (WxHxL) (mm)          6620×1950×1700              7200/8070×1900×1800
Weight                                                          2700kg                                 3100Kg
