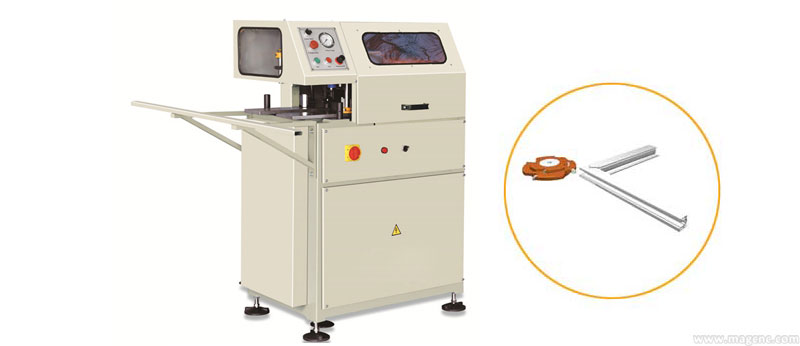

1.Main features
1). .Simultaneously
clean the up & bottom surface and the external corner .
2).Special cleaning cutter should be designed for each profile.
3).Cutter feeding automatically.
4).Within 20 seconds finish one corner complete cleaning.
5). Need to change
cutters to clean different kinds of profiles.
2.Technical Parameters
Brand Name |
MAG |
Model |
SQJ01-120 |
Power Supply |
380V 50Hz or customers specifications |
Input Power |
1.5KW |
Working air pressure |
0.5~0.8Mpa |
Motor rotary speed |
2800r/min |
Air consumption |
100L/min |
Processing profile height |
20~120mm |
Processing profile width |
20~120mm |
Drawing groove width |
3mm |
Drawing groove depth |
0.3mm |
Overall Dimension |
1650*1300*1450mm |
Weight |
300Kg |
