1.Main features

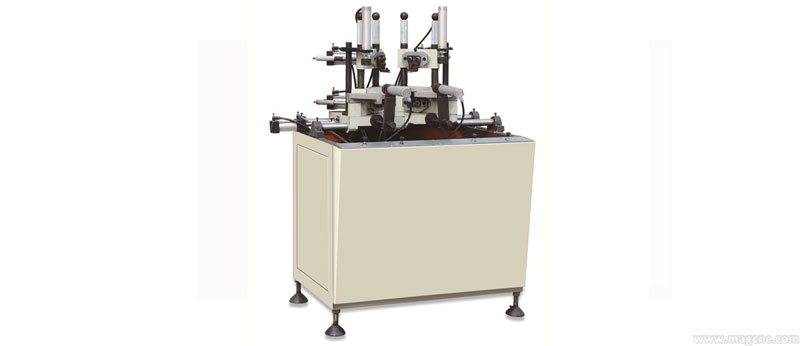

1).The machine is
used for PVC door and window transom "V" or "+" - shaped
welding cleaning work.
2).It features advanced technology, reliable function and easy operation.
3).This machine has improved on the pressing location, which makers the pressed
well.
2.Technical Parameters
Brand Name |
MAG |
Model |
SQJ05-120 |
Power Supply |
380V 50Hz or customers specifications |
Working air pressure |
0.5~0.8Mpa |
Air consumption |
100L/min |
Groove width |
3mm |
Groove depth |
0.3mm |
Processing profile height |
40~120mm |
Processing profile width |
40~120mm |
Overall Dimension |
930*690*1300mm |
Weight |
150Kg |
