1.Main features

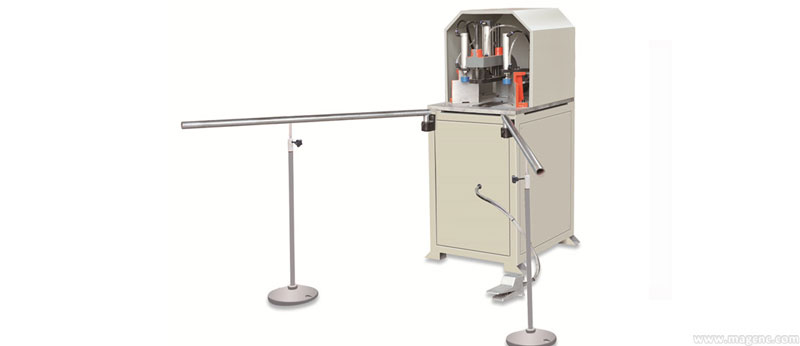

1)..The machine is used for cleaning PVC door and window up
and down surface welding seam after welded of the PVC profiles into angle of
90.
2).It is convenient operation by pneumatic driving.
2.Technical Parameters
Brand Name |
MAG |
Model |
SQJ06-120 |
Power Supply |
380V 50Hz or customers specifications |
Working air pressure |
0.5~0.8Mpa |
Air consumption |
80 L/min |
Processing profile height |
15~120mm |
Processing profile width |
20~120mm |
Drawing groove width |
3mm |
Drawing groove depth |
0.3mm |
Overall Dimension |
1050*670*1370mm |
Weight |
150Kg |
