1.Main features

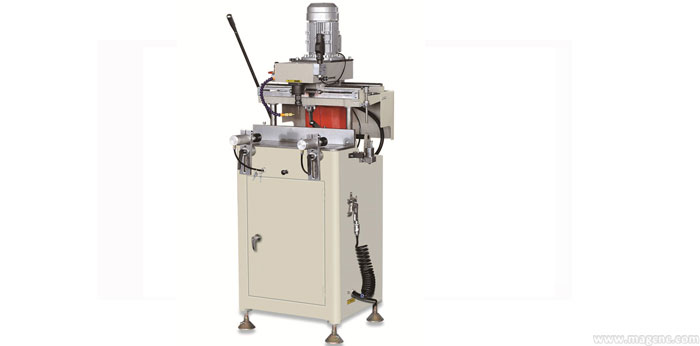

1). Used for copy-routing processing various kinds of holes,grooves and water slots on aluminum and PVC windows and door.
2). The largest improvement of bearing seat structure, the belt can be easily replaced, become a more complete product structure.
3). Precision linear bearing guide rail, make the cutter movement smooth and flexible, easy to operate.
4). It makes the milling cutter easy to clamp for its high standard milling cutter and main axis taper from precision work..
5). Excellent gas oil automization cooling system makes the milling effect better, cutting tool durable

2.Technical Parameters

Brand Name                                          MAG
Model                                                      LXF-235*100
Power Supply                                         380V 50Hz or customers specifications
Input power                                           1.1kw
Air pressure                                           0.6-0.8Mpa
Rotate speed                                         2840 r/min
Milling cutter diameter                      Φ5, Φ8
Copy-routing range                              235*100mm
Overall dimension                                870*700*1500mm
Weight                                                   200kg
