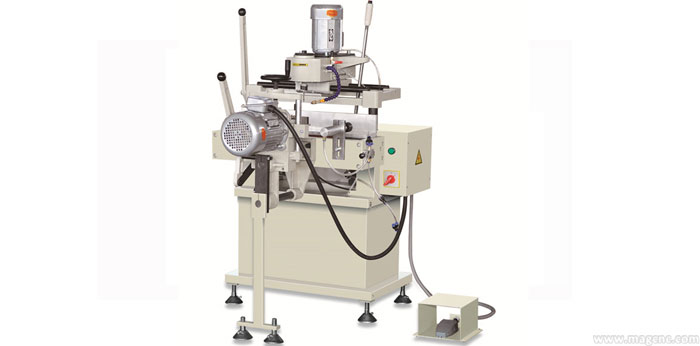

1.Main features

1). Used for processing various kinds of holes of aluminum doors & windows, such as water slot, pulley hole, lock hole and groove of PVC and Aluminum profile.
2). Horizontal milling head and vertical three-hole drill can process three holes on the lock and lock-position hole at one time.
3). Special A-alloy milling cutter with long using life ensures high quality processing.
4). By copying template and auxiliary positioning two copy methods.
5). Using a foot switch control the pressing cylinder, safe and reliable..
6). It has features of compact structure and small volume.

2.Technical Parameters

Brand Name                                                         MAG
Model                                                                    LZ3F-290*100
Power Supply                                                       380V 50Hz or customers specifications
Input power                                                          2.25KW
Air pressure                                                          0.5-0.8Mpa
Processing hole size error                                 ±0.2mm
Processing deviation from straightness         ±0.1mm
Diameter of the three-hole drilling head      Φ12
Centers distance of three-hole drilling head    21.5*21.5mm
Milling cutter diameter                                     Φ5, Φ8
Copy routing range                                             290*100mm
Roughness of cutting surface                           Ra 12.5 μm
Overall dimension                                               1000*1150*1600mm
Weight                                                                   280Kg
