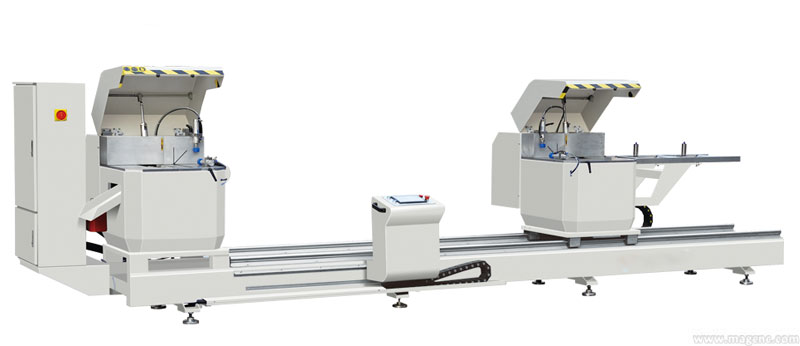

1.Main features

1). It is mainly used for cutting and laying off aluminum alloy curtain wall materials and window materials. And also used for cutting and laying off plastic profile.
2). It uses hard alloy saw blade for ide diameter as big as 20” as well as high linear speed and high processing precision.
3). The two saw can cut simultaneously or separately. The saw blade can be adjusted to be any angle from 45°to 90°
4). The saw blade cut the material from bottom to top safely, and it has enough cutting height and width.
5). The machine is equipped with digital display and CNC system.
6). Optional Model: LJGS-500*4200, LJGX-500*4200, LJG-500*4200

2.Technical Parameters

Brand Name                                             MAG                                 MAG                               MAG
Model                                                         LJGS-500*4200               LJGX-500*4200            LJG-500*4200
Power Supply                                            380V 50Hz or customers specifications
Main motor power:                                5.9kw                                2*2.2kw                        2*2.2kw
Working air pressure                              0.6-0.8 Mpa                    0.6-0.8 Mpa                 0.6-0.8 Mpa
Saw cutting length                                  480-4200mm                  480-4200mm               480-4200mm
Saw cutting (w*h)                                   235*125mm                   235*125mm                 235*125mm
Saw blade dimension                              Ø500*Ø30*4.4               Ø500*Ø300*4.4          Ø500*Ø30*4.4
Saw blade swing angle                           45°~90°                            45°~90°                         45°~90°
Saw blade feeding speed                       0-3m/min                         0-3m/min                      0-3m/min
Saw blade returning speed                   2-3m/min                         2-3m/min                      2-3m/min
Main motor rotation speed                  2800r/min                       2800r/min                     2800r/min
Overall dimmension(L*W*H) mm       5750*1300*1500
Weight                                                       2200kg                             2000kg                           2000kg
