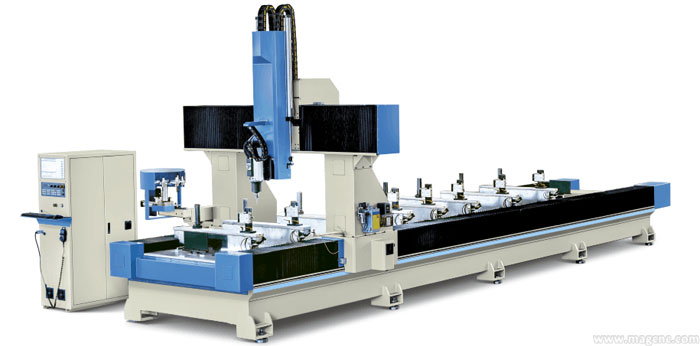

1.Main features

1). This machine is specially for cutting, hole drilling, groove milling processing on all kinds of aluminum profile, plastic steel.
2). It is widely used on process of mold, casting, ceramic sanitary, ship, aerospace chemical industry, rail transportation, photovoltaic, aluminum doors and windows, high  speed rail motor car track aluminum alloy, top grade hotel restaurant revolve door, etc
3). Adopt Taiwan Syntec five-axis cnc control system, with Italy HSD imported high  power five-axis head, easily implement stereoscopic five-side processing one time.
4). Machine transmission adopt Japan Yaskawa servo motors and Japan SHIMPO high  performance reducer. Taiwan ball screw, fast speed, low noise , high precision , long use  life etc advantages.
5). Diversification control, can control the processing speed, blank space speed, the  cutting speed, improve the quality and efficiency of processed products.
6). Unique saw blade cutting function, can realized high precision cutting in different  orientation and degrees.
7). Self-developed system software, easy to operate and can meet different requirements  of processing.

2.Technical Parameters

Brand Name                                              MAG
Model                                                          JGZX5-CNC-5000
Power Supply                                             380V 50Hz
Air pressure                                                0.5~0.8Mpa
Main Spindle                                              HSD Model HS655
Output power of spindle                         15KW
Max rotary speed                                     24000R/min
Saw blade rotary speed                          4000rpm
Max. Diameter of the saw blade          300mm
Z-axis journey                                            500mm
X-axis Speed                                               20000mm/min
Y-axis Speed                                               30000mm/min
Z-axis Speed                                               15000mm/min
C Axis                                                            A±120°C±245°
Working journey                                       X5000mm×Y1000mm×Z550mm
Working precision                                     ±0.02mm
Repeat position                                         ±0.01mm
Working pressure                                     max.10 bar
Feeding speed                                           60m/min×15m/min×15m/min
Lubrication                                                 Auto type
Tool magazine                                           17（8+8+1）
Tool holder specifications                       HSK.F63.ER40
Servo system                                              YASKAVA servo system
Inverter                                                       Delta inverter
Control system                                          Taiwan Syntec 200MA, G code
Overall dimension                                     8500x2500x3000mm
Total weight                                              6000kg
