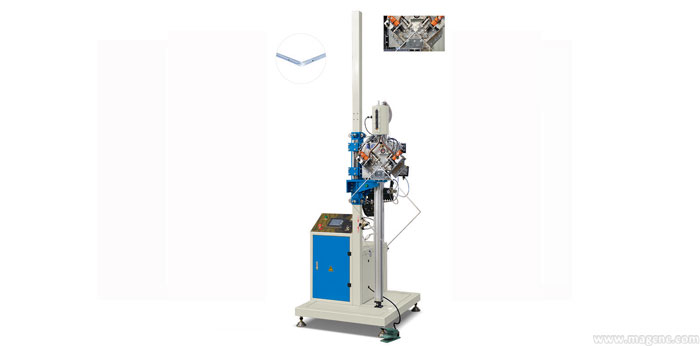

Main features

1、The machine is used to fill the molecule sieve into the aluminum spacer frame so as to keep the air inside dry

2、Vibrator will start automatically when the spacer is put in so as to insure the filling

3、The spacer bars of the machine contain 35aluminum bars(9mm thickness)per time and about 1min to finish the filling

Technical Parameters

InputVoltage         220V50HZ

Air Pressure           0.5-0.8Mpa

Tilling Speed       8-12s (1m*1m 9A)

Spacer bar size    6.5mm*5.5mm---- 6.5mm*23.5mm

Machine sizes        1000mm*820mm*2900mm

Weight                   280kg
