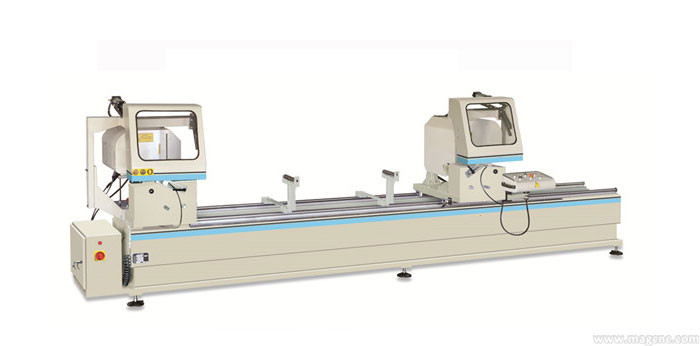

1．Main Feature

1). It is used for cutting aluminum and plastic profiles at the angle of -45°, 90° or 45°.
2). The lathe carriage is moved by a precision linear bearing pair to guarantee the repetitive positioning of high precision.
3). The movable heads are pulled by a stepper motor, and controlled by a CNC system with LED touch screen. This machine can be used for both cutting or sawing corner braces.
4). It is of solid structure, high rigidity, safety and reliability, high machining precision, high working efficiency, simple and convenient operation.

2.Technical Parameters

Brand Name                                                 MAG
Model                                                            LJZ2A-450*3700
Power Supply                                               380V 50Hz or customers specifications
Input power                                                 2*1.5kw
Air pressure                                                  0.5-0 .8 M pa
Main motor rotation speed:                    2840rpm.
Max/min Cutting length                            580-3700mm
Saw blade dimension:                                φ450× φ30
Cutting angle:                                              -45 ° 90 ° 45 °
Cutting W x H                                               120x160 ( mm )
Repeat locating length                              ≤0.2mm
Angle cutting tolerance                            ±5′
Plane of cutting surface                            ≤0.10
Cutting profile surface roughness           Ra12.5um
Size: (width × high × long)                         4600mm × 1300mm × 1550mm
Weight:                                                         1350Kg
